EV Battery Assembly Line Guide Process Automation Testing
Are you facing bottlenecks in your EV battery manufacturing process? Scaling up production efficiently requires absolute precision at every level of the vehicle’s power architecture. When we engineer an EV battery assembly line, we build the system around three highly controlled stages: the cell, the module, and the final pack.
EV Battery Architecture Breakdown
The Battery Cell
The cell is the core electrochemical unit. Handling these units requires exact automation to prevent mechanical stress or material contamination.
- Cell Formats: High-speed handling systems configured for prismatic and cylindrical cells, as well as delicate pouch formats.
- Material Handling: Safe routing of the base materials, including the anode, cathode, and separator layers, ensuring stability before they enter the larger assembly sequence.

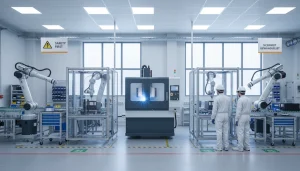

Battery Module Assembly
Individual cells are grouped together to create manageable, protected power blocks.
- Stacking and Connecting: Grouping cells into precise series or parallel arrays to achieve the required voltage and capacity.
- Structural Integrity: Applying end plates, side panels, and compression bands to secure the stacked cells.
- Temperature Control: Execution of the initial thermal management installation, adding thermal interface materials (TIM) and heat sinks to keep individual cell temperatures stable.
Battery Pack Assembly Equipment
This is the final, heavy-duty stage where the power unit is prepared for the vehicle chassis. While we frequently support manufacturers transitioning to direct cell to pack technology, the standard pack integration process involves:
- Module Consolidation: Loading multiple modules into a single, ruggedized structural enclosure.
- System Brains: Executing Battery Management System (BMS) integration to constantly monitor voltage, safety, and performance metrics across the entire pack.
- Routing: Installing the main high-voltage wiring harnesses and connecting the overarching liquid cooling circuits.
Step-by-Step: The EV Battery Assembly Line Process
Building a reliable power source requires a tightly controlled EV battery manufacturing process. We engineer our production lines to move efficiently through four precise stages, ensuring every unit meets the highest global standards.
Cell Preparation and Sorting
Before any physical assembly begins, we inspect every individual unit. Through rigorous EV battery quality control, we test each cell for proper voltage and internal resistance. Grouping perfectly matched cells ensures the long-term health and stability of the final battery pack.
Automated Stacking and Positioning
Physical accuracy during battery module assembly is non-negotiable. We deploy automated battery manufacturing robotics to carefully handle, stack, and align the components. This automated handling easily adapts to exact specifications, whether we are working with prismatic and cylindrical cells or pouch formats.
Intelligent Joining and Welding
To guarantee flawless power delivery, we securely connect the busbars across the cell groups. We execute high-precision laser welding battery cells and ultrasonic joining techniques. This creates robust, low-resistance electrical connections designed to withstand heavy road vibrations over years of driving.
Housing and BMS Integration
In the final step, we utilize heavy-duty battery pack assembly equipment to place the completed modules into their secure structural enclosure. This phase is critical for Battery Management System (BMS) integration, which acts as the brain of the unit. We finish by completing the wiring harness and thermal management installation to keep the entire system operating at safe temperatures.
Automated Battery Manufacturing
In our EV battery assembly line, relying on manual processes simply doesn’t cut it. We build automated systems that do the heavy lifting to keep lithium-ion battery production moving efficiently and safely. Automation is the engine that drives modern production, ensuring we hit aggressive output goals with absolute precision.
Key Automation Benefits
- Speed and Throughput: We maintain high parts-per-minute (PPM) rates without ever sacrificing accuracy. Every automated movement is exact, maximizing your daily yield.
- Built-in Flexibility: Our modular line designs adapt quickly to your changing needs. Whether you are adjusting battery module assembly steps or shifting between different cell sizes and chemistries, the line pivots with you.
- Complete Traceability: We utilize MES integration manufacturing to monitor the entire lifecycle. Our Manufacturing Execution Systems track every single cell and record every weld, guaranteeing complete transparency and uncompromising quality control from start to finish.
EV Battery Quality Control
Safety dictates every decision we make on the EV battery assembly line. If a battery isn’t secure, nothing else matters. That is why we embed uncompromising testing protocols directly into the production flow to prevent thermal runaway and degradation before they ever have a chance to start.
End-of-Line Test Technology
Before any unit leaves our facility, we run mandatory, strict end-of-line checks. We verify every electrical connection, test insulation limits under high voltage stress, and confirm complete Battery Management System (BMS) integration. There is no room for guesswork.
Advanced Leak Detection
Even microscopic leaks can lead to catastrophic safety hazards. We eliminate this risk by integrating multi-layered leak detection stations right into the manufacturing process:
- Air Leak Testing: Our rapid baseline check for structural integrity and secure housing seals.
- Helium Leak Detection: Built for absolute precision. Helium particles find the microscopic flaws and weld gaps that standard air testing might miss.
- Electrolyte Leak Testing: The ultimate safeguard to ensure active materials stay firmly locked inside the cell.
By hardwiring these testing standards into our automated equipment, we guarantee that every single pack leaving our floor meets the strictest global safety benchmarks.
Choosing Your EV Battery Assembly Line Partner
Building a reliable EV battery assembly line requires a partner who understands the fast-paced demands of the global market. You need more than just standard battery pack assembly equipment; you need a system built for speed, safety, and scale. We focus on delivering exactly that.
Turnkey Automation Solutions
We know that getting your production up and running smoothly is the top priority. Here is what we bring to your facility:
- Rich Design Experience: We don’t do one-size-fits-all. We deliver high-quality, custom-tailored turnkey automation solutions designed around your specific production goals and floor space.
- Fast Project Delivery: The EV industry doesn’t wait. Our aggressive project management meets tight deadlines, ensuring your new EV platforms launch right on schedule.
- Proactive Service Strategy: Hardware is only half the job. We provide ongoing, responsive support and integrated EV battery quality control to minimize assembly line downtime and keep your output consistent.
